LAB-MN230WBEAM Guangzhou LAB Stage Equipment Co., Ltd

230W mini moving head beam light

Parameter

Lighting effect

Product video

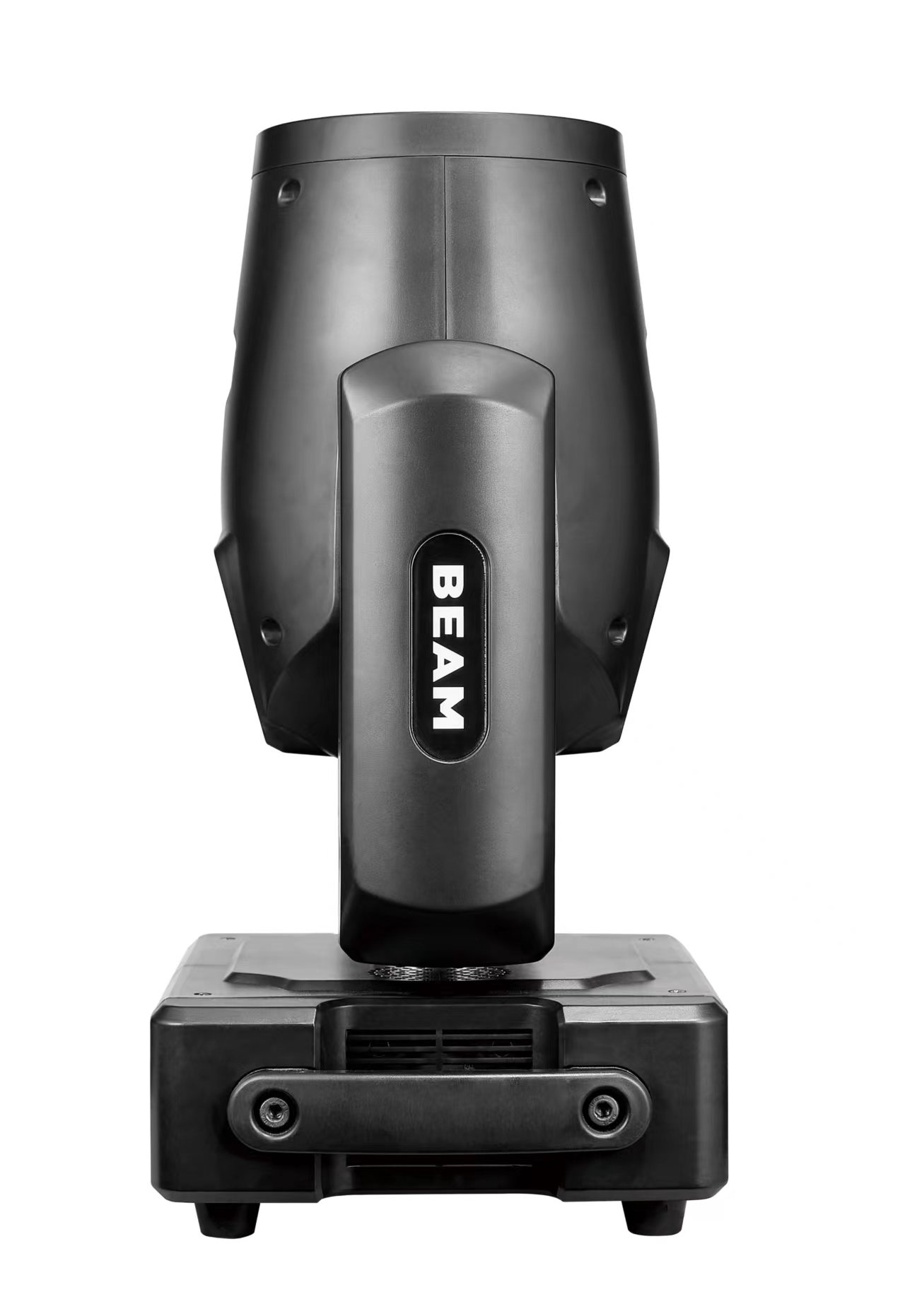

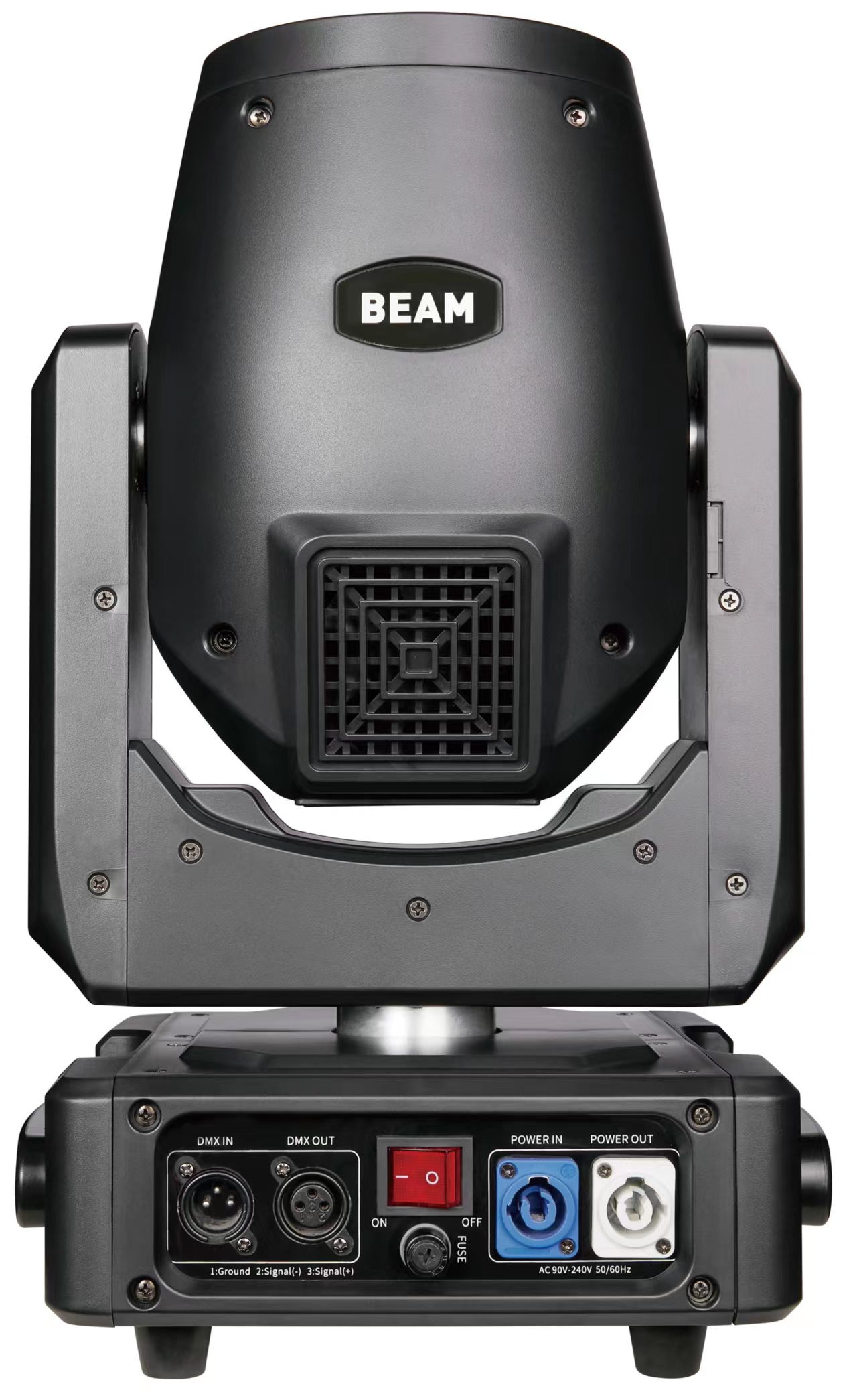

Mini 230 Beam Light (Moving Head Light)

Technical Parameters:

1, Bulbs available models: customized 230w bulbs

2, Control: Control to switch the bulb or manually

3. Ballast: Electronic ballast (380V input)

4. Power supply: switching power supply (100-240V input)

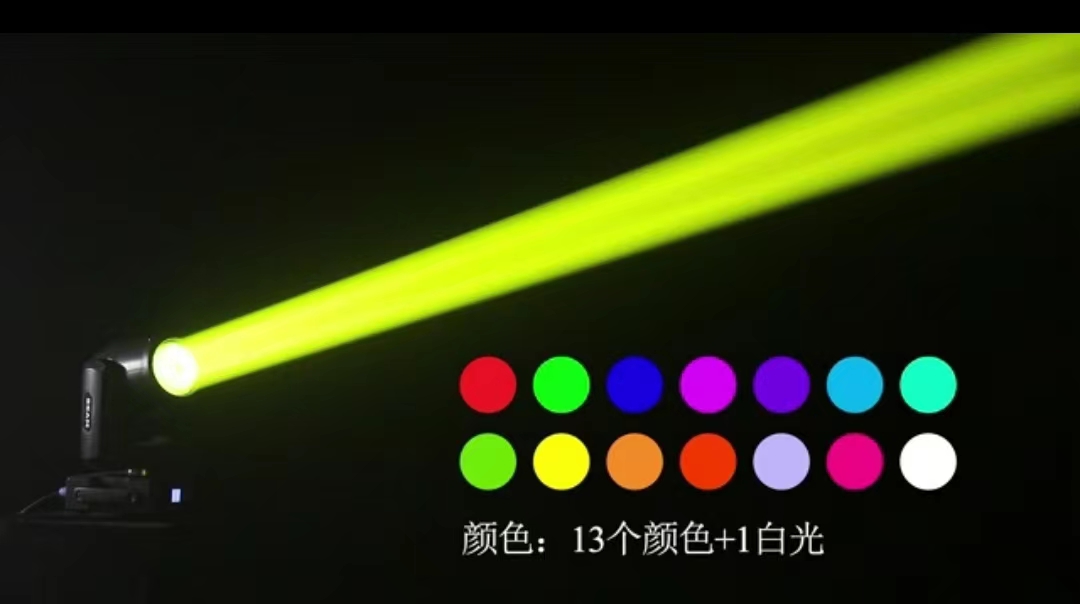

5. Main color wheel: 14 kinds of color + white light, rainbow effect, 14 kinds of color linear mix 6, gobo wheel: 14 fixed patterns + white light

Pattern flowing effect, pattern vibration effect

The pattern is positioned at any angle, and the pattern rotates counterclockwise

7. Strobe: Independent strobe channel, 1-10 times/second, built-in macro function

8. Dimming: Independent dimming channel, 0-100 linear precise dimming

9. Atomization: Independent linear atomization

10. Special effects: 8+16+24 (optional 8+16) prism effect, magnifying effect

Prism and any angle positioning, rotation, prism pattern combination built-in program

Precision motorized focus 11, X/Y axis movement: X axis 540°, Y axis 280°, X/Y axis with automatic error correction function

Independent X/Y axis speed adjustment, rotation fine-tuning function

12. X/Y axis resolution: 8/16 bit

13. Control & Programming: 16 standard DMX512 channels

Built-in microphone for voice-activated effect

Packing size: 50*34.5*36.5cm

Gross weight 12KG
